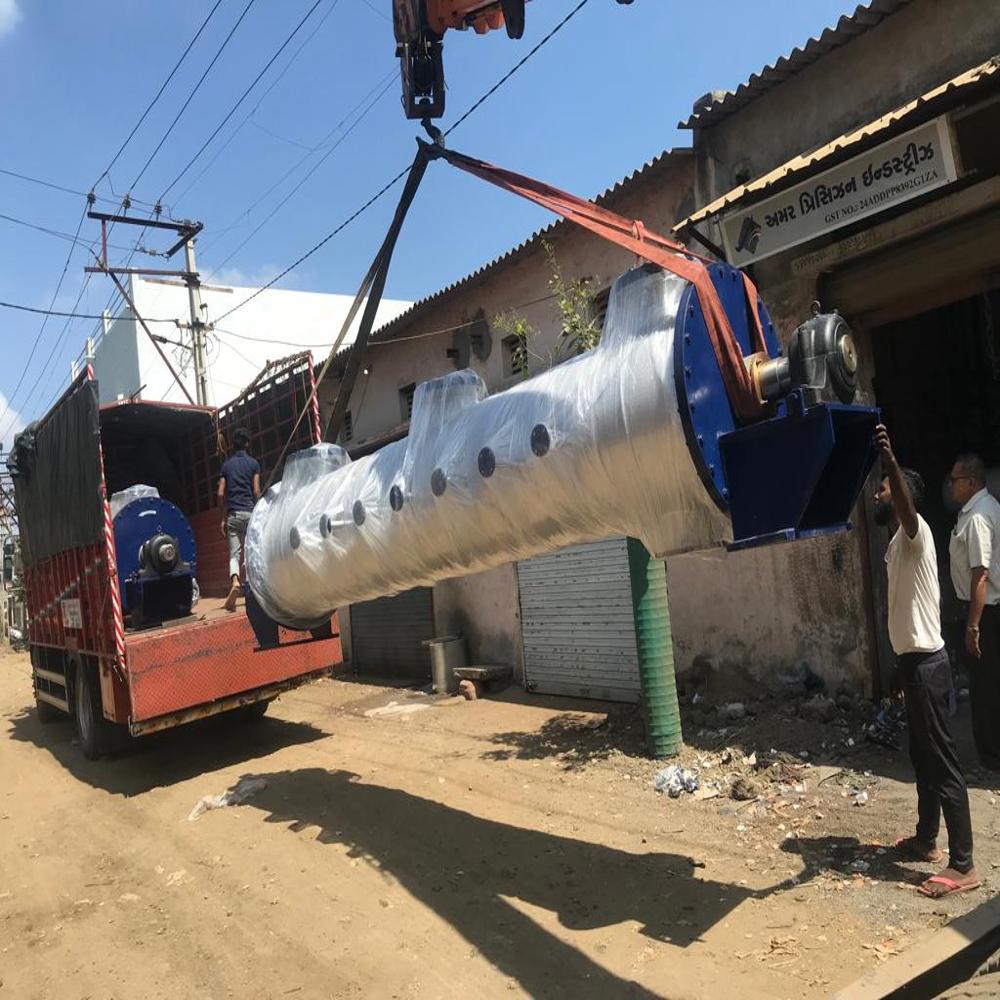

heater mixer for pulp mill

Name: heater mixer for pulp mill
Brand: Amar Precision Industries
Price: 900000.0 INR
Availability: InStock

Price 900000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

heater mixer for pulp mill Specification

Machine Type
Pulp Processing Equipment

Model No
HMPM-Series

Connectivity Options
Analog / Digital Sensors (optional)

Lubricating System
Centralized Lubrication (if gearbox present)

Accuracy
1C Temperature Control

Features
Corrosion Resistance, High Mixing Efficiency, Steam Jacketed, Heavy Duty Construction

Control System
PLC Based/Manual Control

Drive
Electric Motor with Gearbox

Power Rating
Depends on Custom Build

Frame Type
Horizontal Cylindrical Frame

Cooling System
Optional - Indirect Cooling Water Jacket

Production Capacity
5-20 TPD (Tons per Day) depending on model

Frequency
50/60 Hz

Operating Temperature
Up to 120C (Steam Heating)

Voltage
380V / 440V AC

Noise Level
Less than 75 dB

Motor Power
7.5 - 15 HP (as per requirement)

Product Type
Heater Mixer for Pulp Mill

Technology
Direct Steam Heating / Mechanical Mixing

Power Source
Electric

Operating Type
Automatic / Semi-Automatic

Power
5-15 kW (as per design)

Pressure
Up to 10 bar

Surface Treatment
Polished / Painted

Dimension (L*W*H)
Customized (Typically 2500-4500 mm Length)

Weight (kg)
1500 - 5000 kg (Depending on size/model)

Color
Silver with Blue End Covers

Usage & Applications
Pulp Mill, Temperature Elevation & Mixing of Pulp Slurry

Service Support
Onsite Installation & Training

Temperature Sensor Type
PT100/RTD Compatible

Paddle/Agitator Material
SS316 for high corrosion resistance

Material of Construction
Stainless Steel 304/316 or Carbon Steel

Steam Jacket Pressure
Design up to 10 bar

End Connection Type
Flanged Ends

Maximum Pulp Consistency
Up to 5% consistency

Mixing Time
10-20 minutes (depending on batch size)

Maintenance Requirement
Low Maintenance, Easy Access Panels

Agitator Type
Helical Ribbon or Paddle Type

Installation Mode
Floor Mounted

Shaft Sealing
Double Mechanical Seal or Gland Packing

Design Standards
ASME / IS / DIN (as per customer request)

Finish
Mirror / Matt Finish as per requirement

Automation Grade
Semi-Automatic/Fully Automatic on Request

Steam Inlet Size
DN50 / Customized

heater mixer for pulp mill About

Get flawless temperature elevation and mixing for pulp slurry with the HMPM-Series Heater Mixer for pulp mills. Spotlighted for its enviable performance and robust construction, this hot deal features helical ribbon or paddle agitators and is crafted from paragon materials like SS304/316 or carbon steel. Achieve up to 5% pulp consistency and experience flawless blending within 10-20 minutes. Engineered for low maintenance, it offers easy access panels, dual shaft sealing, and PLC/manual controls, promising operational excellence and energy efficiency for demanding processing environments.

Commercial Excellence & Leading Advantages

Designed for both specific and general use in modern pulp mills, the HMPM-Series heater mixer excels at temperature elevation and homogeneous mixing of pulp slurries. With a capacity up to 20 TPD and compatibility with rigorous industrial standards, this paragon solution delivers heavyweight performance for commercial processing. Its standout competitive advantages include advanced corrosion resistance, high mixing efficiency, reliable automation, and robust mechanical integrity, making it an enviable choice in pulp processing equipment.

Sample Policy & Supply Capability

We value your investment with transparent sample policies and secure shipping options for the HMPM-Series heater mixer. A sample unit can be made available for evaluation upon request, ensuring you can assess performance before full-scale adoption. Our streamlined offer includes professional support, swift valuation, and consistent supply ability to meet global demand. Rest assured, every shipment is handled with care, ensuring safe delivery and optimal product integrity on arrival.

FAQ's of heater mixer for pulp mill:

Q: How does the heater mixer ensure effective pulp mixing at high consistency?

A: The heater mixer employs a helical ribbon or paddle agitator designed for rigorous blending, allowing for up to 5% pulp consistency. Its design promotes thorough agitation, resulting in uniform temperature elevation and consistent slurry quality within 10-20 minutes.

Q: What kind of installation and maintenance support do you provide?

A: We offer onsite installation and training for smooth start-up and operation. The mixer boasts low maintenance requirements, with easy access panels for straightforward servicing and double mechanical seal or gland packing for secure shaft sealing.

Q: When is the ideal time to use the heater mixer in the pulp processing cycle?

A: The HMPM-Series heater mixer is best utilized during temperature elevation and mixing stages, ensuring homogeneous pulp preparation ahead of downstream processing steps like washing or flotation.

Q: Where can this mixer be installed within the pulp mill setup?

A: This unit is designed for floor-mounted installation, adaptable to various sections of the pulp mill, including pre-processing and intermediate storage areas, thanks to customizable dimensions and multiple connectivity options.

Q: What benefits does this heater mixer offer over traditional mixing equipment?

A: Key benefits include high mixing efficiency, precision temperature control (accuracy of 1C), low noise operation, corrosion-resistant build, and customizable automation-delivering reliable results while minimizing downtime and energy usage.
